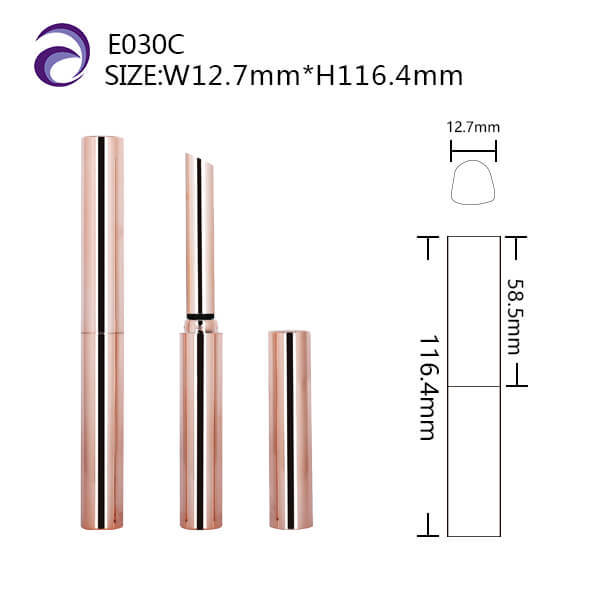

E030C-1 Lip gloss tube
Summary: From product design - mold making - injection molding - surface treatment - assembly and sales, we strive to provide customers with high-quality production services.
Main products: lipstick tubes, lip gloss tubes, eyelash tubes, eyeliner tubes, etc.
Keywords: lipstick tube, lip gloss tube, eyelash tube, eyeliner tube
Aiming at the deficiencies of the lip gloss bottle in the above-mentioned prior art, the lip gloss tube utility model provides a lip gloss tube, the brush handle rod is firmly fixed, convenient and durable, the bottle cap is tightly closed, and the sealing performance is good...
Aiming at the deficiencies of the lip gloss bottle in the above-mentioned prior art, the lip gloss tube utility model provides a lip gloss tube, the brush handle rod is firmly fixed, convenient and durable, the bottle cap is tightly closed, and the sealing performance is good, and the added lighting lamp enlarges the cost. The scope of application of the utility model. The technical solution of the present invention includes a bottle body, a cover, and a brush assembly fixed on the cover and capable of being inserted into the bottle body. The cover has an outer cover and an inner cover, and a lighting device is arranged between the outer cover and the inner cover. The lighting device includes: a battery case fixed in the cover, the battery case is provided with an elastic member installed inside the battery case and a metal conductor fixed at both ends of the battery case, and one end of the metal conductor for fixing the battery case is an opening , between the inner cover and the battery case is provided with a movable bracket that can slide along the telescopic direction of the elastic member, the battery is stored between the movable bracket and the elastic member, and the inner cover is provided with a through hole and A light-transmitting hole penetrates through the through-hole and exceeds the mating surface of the bottle body and the cap, the light-emitting component corresponds to the light-transmitting hole, and the movable bracket is fitted or disengaged between the bottle body and the cap The metal conductors that can be recovered in the process are copper strips or plated iron strips, a slot is provided on the upper part of the movable bracket, the metal conductor is put into the slot, and the movable bracket is driven by sliding The metal conductor is abutted or separated from the battery, and the energization circuit of the light-emitting component is turned on or off.
The lip gloss tube is fixed to the brush holder on the inner cover and the brush mounted to the end of the brush holder. The outer surface of the inner cover is provided with a fitting rib having a concave-convex shape along the axial direction of the brush handle, which is conducive to fitting and fixing with the outer cover. The middle section, which is connected with the above-mentioned inner cover in a way of screwing with the cover. In some cases, it can also be connected in other ways, such as the capture method, the size of the card method, etc. An inner bolt is installed on the middle section. The light-emitting components are LED lights.
The lip gloss tube is a cuboid or cylindrical table. A lens is arranged on the bottle. The number of the above-mentioned lenses is preferably attached to the side surface of the above-mentioned table body on one side or four sides. In this solution, when the lip bottle is closed, the shoulder of the bottle body pushes the end of the movable bracket upward, so that the bosses on both sides of the groove of the movable bracket move against the battery at the same time, out of contact with the metal conductor, and the circuit is broken. When the bottle cap is opened, the LED light is extinguished, and the beneficial effects of the present utility model are as follows: the brush handle of the present utility model is firmly fixed, no shaking occurs during use, and the practicability is strong. The lighting device has an exquisite structure, a novel and practical design of the switch mechanism, and is convenient to use; the product of the utility model is particularly suitable for consumers to make up and make up easily without a mirror at night. The utility model is provided with a bottle body, a brush assembly which is fixed on the cap and can be inserted into the bottle body, and the cap is composed of an outer cover and an inner cover.
